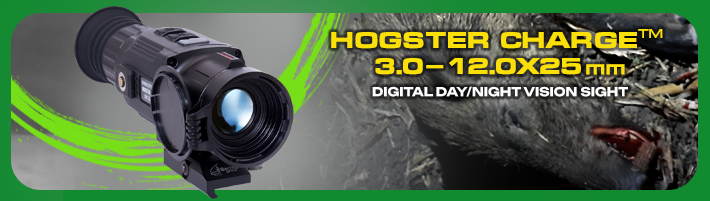

HOGSTER CHARGE™ 3.0-12.0x25 Digital Day/Night Vision Sight (BE18025) Americas

Best-in-class – 6-year manufacturer’s transferable warranty on parts and labor

Best-in-class IR sensitivity

Only-in-class Digital Night Vision scope that can be used at night without artificial IR light

Superior for hog and predator control at medium-range ranges up to 300 yards at night with or without an IR illuminator

Compact & lightweight

24/7 Performance

4uμ High-sensitivity HD CMOS core

3 switchable image modes (two are full color, one is B&W)

To increase effective distances at night, can be used with any 850nm or 940nm IR flashlight designed for Gen2+ and Gen3 NV devices.

No firmware updates are required during the lifetime of the scope

Build in Quick-Detach (QD) Picatinny Rail Mount (Weaver type QD Mount is optional) with guaranteed zero retention

Stadiametric Rangefinder function to estimate the distance to the targets; manually adjustable target’s height

16GB internal memory to record .MP4 video and .jpeg images

8 reticle patterns, including 3 BDC type reticles

Ability to save 4 profiles of zeroing calibration data

4 color options for each reticle pattern

Standard kit includes 940nm hazardless LED IR Flashlight

WIFI capable - allows media recording to the mobile device (IOs or Android App is required)

Build-in magnetic port for video output and 5V DC external power connection

High Resolution 1280x960 Display

Picture-in-Picture function- 2X multiplied image on the top of the display

Protected against excessive light exposure

Manual control of the image sharpness, screen brightness, and contrast

Freeze Function for one shot zero

Battery status indicator

Nitrogen purged

Standby mode

Digital zoom

Timer

The most complete digital day/NV scope kit on the market

The Bering Optics HOGSTER CHARGE™ Digital NV Scope is built with the advanced 4μm HD CMOS 1920x1080 resolution digital core, paired with multicoated optics, making it ideal for hunting and predator control at day, dusk and night time at medium distances up to 330 yards. The extensive control options and the 3-color image modes (Day, Dusk, Night) enable the user to use the riflescope 24/7 in a variety of conditions and personal preferences. There are 8 reticle patterns including 3 BDC reticles with a color option selection for each reticle pattern. The sight operation is controlled with three buttons allowing easy selection of the needed option.

Superior NIR sensitivity sensor enables the scope to perform passively at night time and outperform typical digital scopes based on visible light sensor technology, and keep up with Gen2+ scopes at a fraction of their price. For a longer detection range or in complete darkness, the riflescope can be used with 850nm or 940nm IR torches designed for NV Gen 2+ and Gen 3 riflescopes.

HOGSTER CHARGE™ is water-, dust- and shock-proof and shock-rated for .308 Win Mag., 30-06 Spring Mag. HOGSTER CHARGE™ is lightweight and ready for action.

Product Modification	HOGSTER CHARGE DNV
Product SKU#	BE18025
Optical Magnification, x	3.0x
Digital Magnification, x	2X, 3X, 4X
Objective lens system	35mmF/1.4
Angular FOV at 3.0x (horizontal x vertical), degree	8.4° x 6.3°
Eye relief, mm	35
Focus range, yard	1 to infinity
Diopter Adjustment, D	-7: +3
Reticle W/E increment value per pxl at a distance of 100m (110yds)	0.45” (1.14cm) increment per pxl
Sensor resolution, pxl	1920 x 1080
Pixel pitch, µm	4
Operating Wavelengths Range, nm	400-940
Display type and resolution, pxl	LCOS 1280x960
Display type and resolution, pxl	OLED 1024 x 768
Start-up time, min., sec.	10
Object type and size, approx., ft² / m²	Hog size 7.5 / 0.7
Detection w/out IR Flashlight, approx., yds / m	220 /200
Recognition w/out IR Flashlight, approx., yds / m	110 /100
Detection with IR Flashlight, approx., yds / m	330 /300
Recognition with IR Flashlight, approx., yds / m	170 /150
Dimensions with QD mount, in / mm	7.7" x 2.83" x 2.36" / 195 x 74 x 61
Weight w/out batteries, approx., oz/g	17 / 480
Power supply	3V CR123 (two) or 3.7V rechargeable 16340 (two) or 3.7V rechargeable 16650 (two) with Extended Battery Compartment (sold separately) or Magnetic port with 5V DC External power supply (sold separately)
Estimated battery life with two 3V Lithium non-rechargeable CR123, approx., hour**	up to 3.5
Estimated battery life with 3.7V rechargeable Li-ion 16340, approx., hour**	up to 4.0
Estimated battery life with two 3.7V rechargeable Li-ion 16650, approx., hour**	up to 6.0
Operating temperature, typical, °F/°С	-4° to +122° / -20° to +50°
Water intrusion	IP66
Humidity, %	up to 93%

HOGSTER CHARGE™ 1920x1080 Digital NV Sight
Quick-Release (QR) Picatinny mount BE80990
Front lens protective cap
Rubber eye guard
Two Lithium 3.0V non-rechargeable CR123 batteries
Magnetic cable
IR Flashlight 940nm with a Picatinny mount-adaptor
Soft Carrying Case with a shoulder strap

OPTIONAL ACCESSORIES

Tactical Rubber Eye Guard (BE80035)
Extended Battery Cap for 16650 (two) batteries (BE80008)
